Guide rings Gildemeister

Guide rings

Download PDF

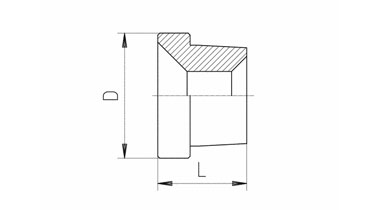

Code	Description	Models	d	D	L	Bore Choose:
T1101900	AS12	Gildemeister: As12	19.0	0.0	10.0	Product not available
T1101851	GM16	Gildemeister: Gm16	16.0	18.5	18.0
T1101850	GM16	Gildemeister: Gm16	18.5	0.0	12.0
T1102850	AS16/20 GS/GM20	Gildemeister: As16 As20 Gs20 Gm20	28.5	0.0	10.0
T1102851	AS16/20 GS/GM20	Gildemeister: As16 As20 Gs20 Gm20	25.0	28.5	25.0
T1103020	AS25	Gildemeister: As25	26.3	30.2	8.0
T1104381	AS25	Gildemeister: As25	33.0	43.8	27.0
T1103600	GS25	Gildemeister: GS25	32.5	36.0	44.0	Product not available
T1103203	GM26	Gildemeister: GM26	32.0	37.5	36.0	Product not available
T1103590	AS32	Gildemeister: As32	32.7	35.9	9.0
T1104380	AS32	Gildemeister: As32	33.0	43.8	27.0
T1104001	GM32	Gildemeister: Gm32	40.0	47.8	43.0
T1104201	GM35	Gildemeister: Gm35	42.0	47.8	43.0
T1104700	GM42	Gildemeister: Gm42	47.0	52.0	43.0
T1105190	AA/AS48	Gildemeister: As48	49.7	51.9	16.0
T1105750	AA/AS48	Gildemeister: As48	49.0	57.5	35.0
T1107200	AS67	Gildemeister: As67	67.9	72.0	17.5	Product not available
T1108000	AS67	Gildemeister: As67	68.0	80.0	52.0	Product not available
T1107201	AS67	Gildemeister: As67	68.7	72.0	23.0	Product not available
T1108610	AS80		83.5	86.1	28.0	Product not available
T1103023	GM26	Gildemeister: GM26	32.0	37.5	36.0
T1109150	AS80		83.0	91.5	62.0
